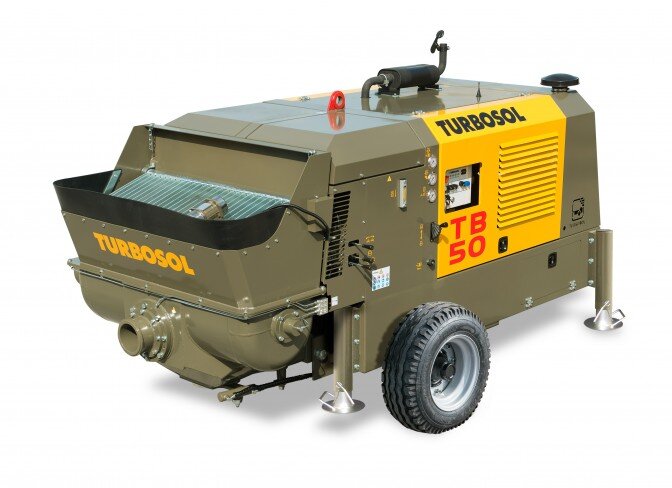

TECHNICAL DATA - TB50

Liquid cooled diesel engine Kubota - V3307 CRTEGB turbo 4 cyl. - 55 kW - 74 HP (Stage V - III A) @ 2600

Infinitely adjustable output [*] from 4 to 50 m3/h

Max. aggregate size 35 mm

Max. working pressure 80 bar

Pumping cylindersØ 200 mm stroke of 1000 mm

Max. strokes 27

Drive cylinder diameter100/56 mm

Delivery collector Ø 150 mm

Hopper capacity 500 l

Delivery distance [*] 200 m

Delivery height [*] 100 m

Filling height 128 cm

Chassis fixed axle, pneumatic wheels and draw bar

Dimensions (L x W x H) 454X210X205 cm

Weight (draw-bar) 3.220 kg

[*] The data indicated are theoretical and depend on the quality and consistency of the materials to be used wear and tear of the pump and the diameter of the hoses. The performance in distance and height can not be reached simultaneously.
