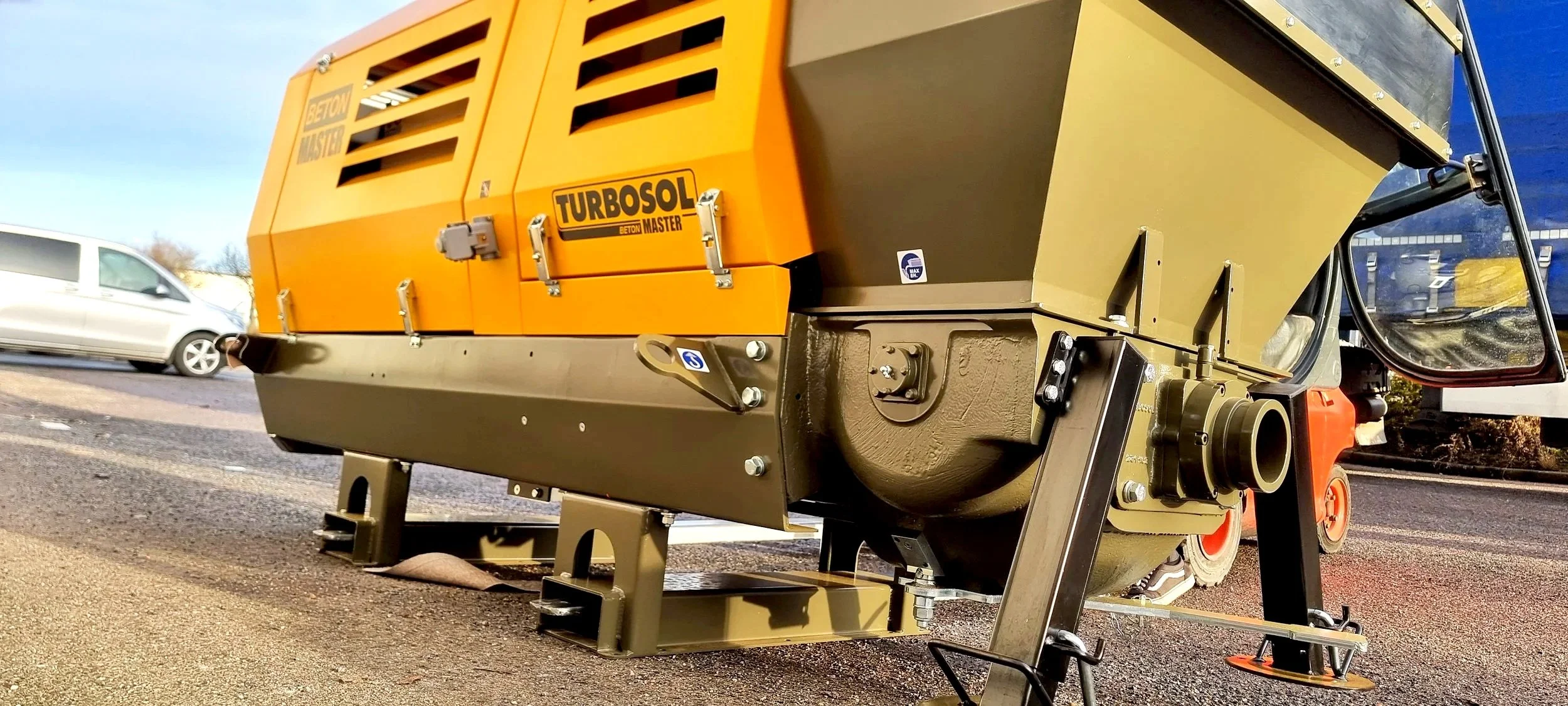

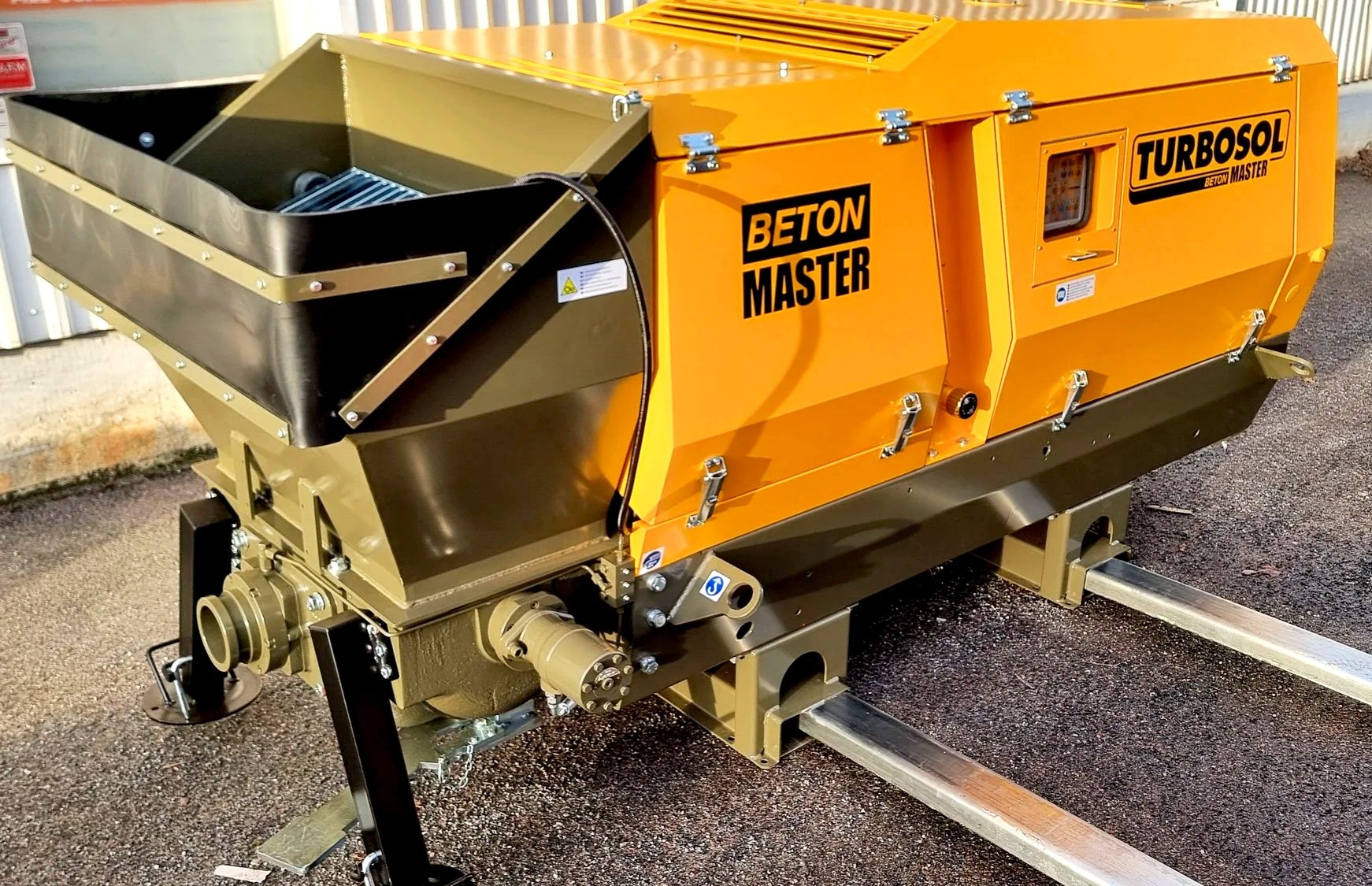

BETONMASTER (15m3/H)

Smidig minipump för betongpumpning och betongsprutning

BETON MASTER TECHNICAL DATA

Liquid cooled diesel engine 4-cylinder - Yanmar 4TNV88C - DYI2D - 4 cylinder - 35,5 kW - 48,3 HP (EU Stage V)

Electric motor (upon request) 22 kW - 400 V 50 Hz

Infinitely adjustable output* from 2 to 15 m3/h

Max. aggregate size 25 mm

Max. working pressure 80 bar

Pumping cylinders Ø 120 mm stroke of 700 mm

Max. strokes 30

Drive cylinder diameter 80/50 mm

Delivery manifold Ø 100 mm

Hopper capacity 250 l

Delivery distance* 100 m

Delivery height* 80 m

Filling height 135 cm

Chassis
Manual drawbar - fixed axle and pneumatic wheels
On-road towing - with brakes and suspension approved for road use

Size (L x W x H) 336 (455#1) x 150 (142#1) x 165 cm

Weight (draw-bar) 1.575 kg - 1.620 kg #2

Weight (on road towing set up) 1.720 kg - 1.770 kg #2

*The data indicated are theoretical and depend on the quality and consistency of the materials to be used, wear and tear of the pump and the diameter of the hoses. The performance in distance and height can not be reached simultaneously. #1 with on road towing (/T) set up #2 with admixture dosing pump
