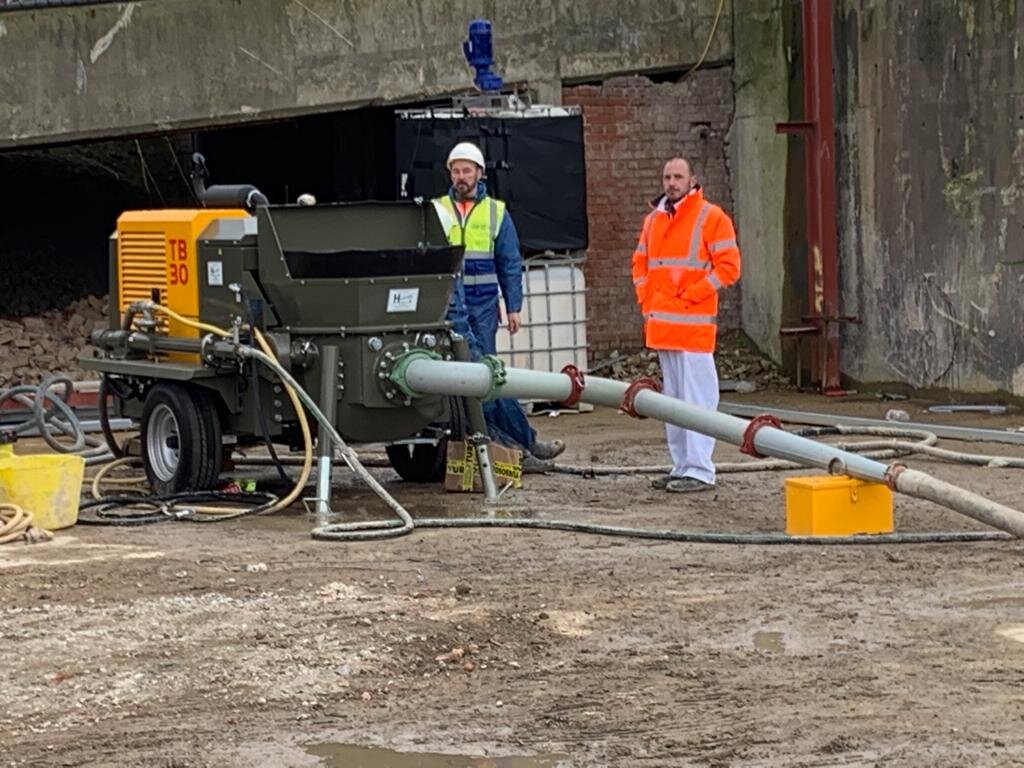

TURBOSOL TB30 TECHNICAL DATA

Air cooled diesel engineYanmar - 4TNV88 - 4 cylinder - 36,4 kW - 49,5 HP (stage III A)

Electric motor (upon request)30 kW – 400 V 50 Hz

Infinitely adjustable output [*] from 4 to 30 m3/h

Max. aggregate size 35 mm

Max. working pressure 80 bar

Pumping cylinders Ø 200 mm stroke of 570 mm

Drive cylinder diameter 100/56

Max. strokes 28/min

Delivery collector Ø 150 mm

Hopper capacity 300 l

Delivery distance [*] 200 m

Delivery height [*] 100 m

Filling height 135 cm

Chassis Manual drawbar - fixed axle and pneumatic wheels

On-road towing - with brakes and suspension approved for road use

Size (L x W x H) 330 x 175 x 165 cm / 455 x 185 x 190 cm [#1]

Weight (draw-bar)2.250 kg

Weight (on-road towing set up) 2.500 kg

[*] The data indicated are theoretical and depend on the quality and consistency of the materials to be used wear and tear of the pump and the diameter of the hoses. The performance in distance and height can not be reached simultaneously.

[#1] With on road towing set up
